What Is a Battery Storage Cabinet?

A Battery Storage Cabinet is a purpose-built enclosure that stores rechargeable batteries while supporting safe operation, monitoring, and maintenance. It is more than a metal box. Inside, battery modules, busbars, sensors, ventilation paths, and control equipment work together. Some cabinets also include cooling systems, fire detection, alarms, and remote monitoring. Their design depends on battery chemistry, capacity, installation location, and expected duty cycle.

“Energy storage is a key enabling technology for a resilient, reliable, and affordable grid,” says Dr. Imre Gyuk, director of the U.S. Department of Energy’s Energy Storage Research program. His observation explains why these cabinets matter beyond simple storage. A well-designed cabinet can help stabilize power, reduce equipment strain, and support backup applications in commercial facilities, factories, and renewable energy sites. However, performance depends on careful engineering and disciplined operation. A cabinet cannot correct poor wiring, neglected inspections, or unsuitable environmental conditions.

Look closely at a typical installation. Temperature sensors track heat near battery modules. Cable glands protect connections from dust and moisture. Clear labels help technicians identify isolation points quickly. These small details often matter most during maintenance. Yet the industry still has room for improvement. Some product descriptions promise “maximum safety” without explaining testing methods, service intervals, or failure responses. That wording deserves skepticism. Buyers should examine certification evidence, thermal management, monitoring functions, enclosure ratings, and emergency procedures before choosing a Battery Storage Cabinet. Reliable storage begins with honest specifications, practical installation, and continuous review. Safety is never finished.

What Is a Battery Storage Cabinet?
Table of Contents [Hide]
1 Definition and Purpose of a Battery Storage Cabinet
2 Main Components and Internal Structure
3 How Battery Storage Cabinets Work
4 Types and Common Applications
5 Safety Features, Installation, and Maintenance

Definition and Purpose of a Battery Storage Cabinet

What Is a Battery Storage Cabinet?

Definition and Purpose of a Battery Storage Cabinet

A battery storage cabinet is a purpose-built enclosure for holding batteries during storage, charging, or temporary handling. It usually includes strong shelves, controlled access, ventilation, and clear warning labels. Some models also provide temperature monitoring or fire-resistant construction. The exact features depend on battery chemistry, capacity, and local safety requirements.

Its purpose is to reduce risks from short circuits, overheating, physical damage, and poor storage practices. A suitable cabinet keeps batteries separated from metal tools, moisture, ignition sources, and busy walkways. It can also support organized inspections. Staff can check terminals, swelling, leakage, and damaged casings more easily when every battery has a defined location.

Details matter. Batteries should not be packed tightly if heat can build between them. Charging inside a cabinet may require dedicated electrical protection and manufacturer-approved procedures. A cabinet alone cannot control every emergency. That distinction matters. In real workplaces, users may still place unsuitable batteries inside or ignore inspection records. This weakness deserves attention, because safe storage depends on both equipment and daily behavior. A careful setup includes access control, housekeeping, staff training, and a documented response plan for abnormal battery conditions.

Main Components and Internal Structure

What Is a Battery Storage Cabinet?

Main Components and Internal Structure

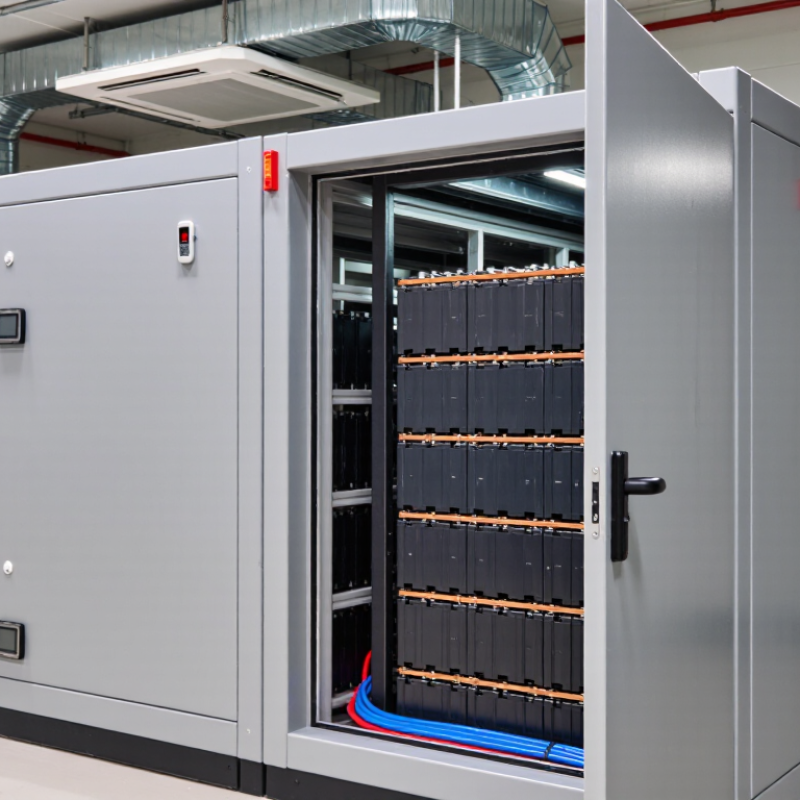

A battery storage cabinet is an enclosed system that houses rechargeable battery modules and their safety equipment. Its steel or composite enclosure protects cells from dust, moisture, impact, and unauthorized access. Inside, vertical racks hold the modules in stable positions. Air gaps around each module help control temperature and simplify inspection.

The battery management system monitors cell voltage, temperature, current, and state of charge. It can disconnect the battery when operating conditions become unsafe. Busbars carry high current between modules, while insulated cables connect the cabinet to external equipment. Fuses, contactors, and service disconnects provide layers of electrical protection. Grounding paths are also important, although they are easy to overlook during installation.

Thermal management may use fans, air ducts, liquid cooling, or controlled heating. Sensors are placed near battery modules and cable connections. Fire detection equipment can identify smoke, abnormal heat, or other warning signs. Some cabinets include ventilation or fire-control systems designed for the installed battery chemistry.

The layout matters.

A well-designed cabinet keeps power cables separate from communication wires. It leaves enough clearance for technicians to remove a module safely. In field inspections, loose terminals and blocked airflow are common concerns. A clean exterior does not guarantee a reliable interior. Designers should also review maintenance access, drainage, labeling, and emergency isolation before commissioning.

How Battery Storage Cabinets Work

A battery storage cabinet is an enclosed system that stores electrical energy in battery modules. It usually includes a battery management system, power connections, sensors, cooling equipment, and safety controls. The cabinet may look like a tall metal locker, but its internal work is highly coordinated.

When electricity enters, the power conversion system changes alternating current into direct current for charging. The battery management system monitors cell voltage, temperature, and state of charge. It balances cells and disconnects the cabinet when conditions become unsafe. During discharge, stored direct current returns through the converter and becomes usable alternating current. This process supports solar power, peak-load control, and backup electricity. The IEA’s Batteries and Secure Energy Transitions report says global battery storage additions reached about 42 GW in 2023, nearly twice the previous year.

Heat matters. Fans, liquid cooling, or passive designs keep cells within their operating range. Fire detection and separation features may also be included, depending on the cabinet design. UL 9540A testing helps evaluate thermal runaway and fire behavior, while NFPA 855 provides installation guidance for stationary energy storage. Real systems are less tidy than diagrams. Dust, aging cells, software settings, and poor airflow can reduce performance. NREL’s 2024 Annual Technology Baseline models around 85% round-trip efficiency for lithium-ion storage, meaning some energy becomes heat or conversion loss. That figure is useful, but not universal. A cabinet’s actual results depend on temperature, load, maintenance, and operating strategy.

Types and Common Applications

What Is a Battery Storage Cabinet?

Types and Common Applications

A battery storage cabinet is an enclosed system for holding battery modules, power electronics, controls, and safety equipment. It can manage charging, discharging, temperature, and fault conditions in one compact structure. Cabinets may be installed indoors or outdoors. Outdoor models usually include weather protection, ventilation, heating, or cooling.

The battery chemistry affects cabinet design. Lithium iron phosphate systems are widely considered suitable for stationary storage because of their thermal stability and long cycle life. Nickel-manganese-cobalt systems can provide high energy density, but require careful thermal management. Lead-acid cabinets remain useful for backup power, although they are heavier and need more maintenance. The boundaries are not always neat. Actual performance depends on temperature, installation quality, operating limits, and maintenance records.

Common applications include commercial peak shaving, data-center backup, telecommunications, renewable-energy integration, and microgrids. A factory may charge batteries during low-cost periods, then discharge them during demand peaks. A solar project can use cabinets after sunset. The International Energy Agency’s Batteries and Secure Energy Transitions report states that global energy-storage capacity must increase sixfold by 2030, reaching 1,500 GW. Battery systems are expected to provide most of that growth. The U.S. Department of Energy also identifies grid resilience and renewable integration as major storage applications. Cabinet selection should follow local electrical codes, fire protection requirements, and relevant testing standards such as UL 9540 and UL 9540A. Oversizing is common, but it can waste space and capital.

Safety Features, Installation, and Maintenance

What Is a Battery Storage Cabinet?

Safety Features, Installation, and Maintenance

A battery storage cabinet protects cells from impact, heat, moisture, and unauthorized access. A reliable cabinet should use fire-resistant materials and include suitable ventilation. Some systems also provide temperature sensors, smoke detection, and automatic suppression. These features help limit damage when a cell overheats. They do not remove every risk.

Installation requires more than placing the cabinet near a power outlet. A qualified electrician should check the floor strength, electrical capacity, grounding, and required clearances. Keep the cabinet away from exits, heaters, water sources, and combustible storage. Follow local fire codes and the battery manufacturer’s instructions. A small clearance error can complicate emergency access. That detail is easy to miss.

Maintenance should include routine visual checks, alarm tests, and inspection of cables, seals, doors, and ventilation openings. Look for swelling, unusual odors, corrosion, heat marks, or unexpected noise. Record temperatures and fault messages when the system provides them. Never open an energized cabinet without proper training and isolation procedures. Clean dust carefully, not with liquids. Replace damaged parts promptly. Even a neat cabinet may contain hidden faults, so inspection records should be honest about uncertainty. Safety depends on consistent habits, not appearance alone.

What Is a Battery Storage Cabinet?

A battery storage cabinet is an engineered enclosure designed to store batteries safely while helping control fire risk, temperature, ventilation, access, and electrical hazards.

Typical maintenance schedule: Visual checks are commonly performed most frequently, while alarm testing and electrical connection inspections are scheduled at longer intervals. Actual intervals must follow applicable regulations, the battery system design, and the equipment manufacturer's instructions.
